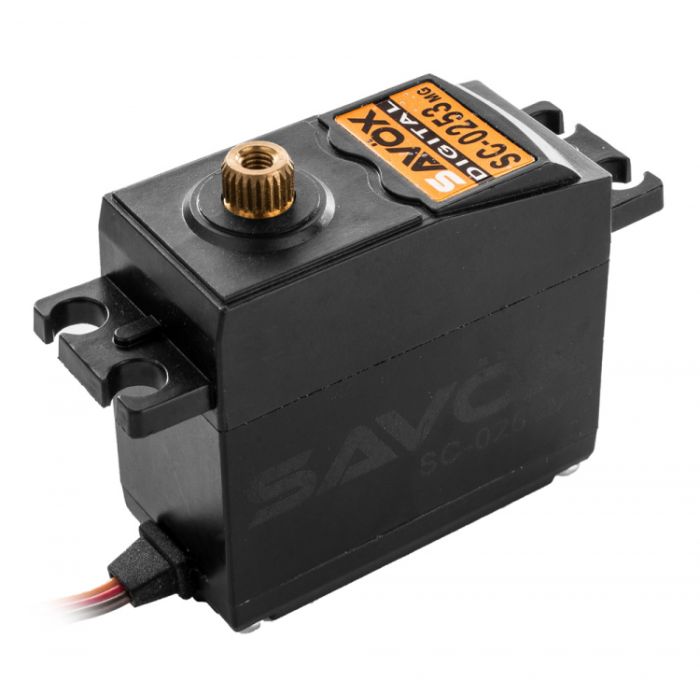

Savox Servo Digital (6kg/cm) 6Volt (SC-0253MG)

Sonderangebot CHF 25.90 Normalpreis CHF 32.90
SKU
, SC-0253MG

The SC-0253MG is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.



Lager rc

Features:

    Strong metal gear train for added durability
    Ideal for 1/10 cars and planes
    Great replacement for standard servos with plastic gearing


Specifications:

    Torque @ 4.8V: 4kg/cm
    Torque @ 6V: 6kg/cm
    Speed @ 4.8V: 0.17 sec/60 deg
    Speed @ 6V: 0.15 sec/60 deg
    Dimensions L x W x H: 40.7 x 20.0 x 37.0mm
    Weight: 59g


Technical Details:

    Operating Temperature: -10° to 50°C
    Running Current (no load): 220mA @4.8V, 240mA @6.0V
    Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
    Idle Current: 5mA @4.8V, 5mA @6.0V
    Wire Length: 250 ± 5mm
    Output Gear Spline: 25 Tooth
    Bearings: 2BB
    Operating Travel: 120° (1000 → 2000 µ second)
    Neutral Position: 1500 µ second
    Pulse Width Range: 800 → 2200 µ second
    Maximum Travel: Appx 164° (800 → 2200 µ second)
    Refresh Rate: 240 Hz
    Motor Type: Brushed

Mehr Informationen
Lager rc Ja
Masstab 1:10
