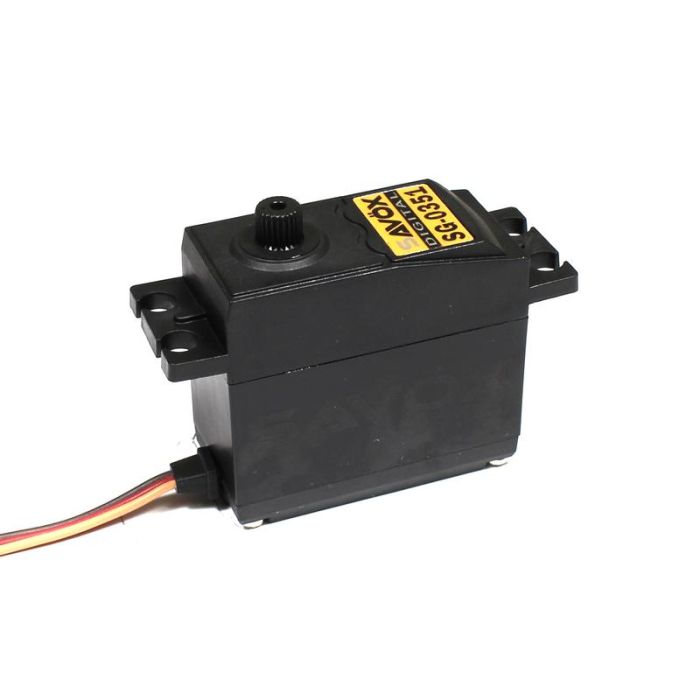

Savox Servo Digital (4.1kg/cm) 6Volt (SG-0351)
Grösse (mm): 40.7 x 20.0 x 37
Gewicht(g): 41.0
Getriebe: Industrial Plastic
Gehäuse: Plastic
Bei 6.0 Volt:
Stellgeschwindigkeit sec/60°: 0.17
Stellkraft kg-cm: 4.1
The SG-0351 is a standard digital servo with dual bearing support for increased precision and durability.
Features:
Industrial plastic gears provide smooth and quiet operation.
Higher value standard servo with dual ball bearing support.
Specifications:
Torque @4.8v - 3.2kg/44.4oz-in
Torque @6v - 4.1kg/56.9oz-in
Speed @4.8v - 0.22 sec/60 deg
Speed @6v - 0.17 sec/60 deg
Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
Weight: 41.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V
Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushless
