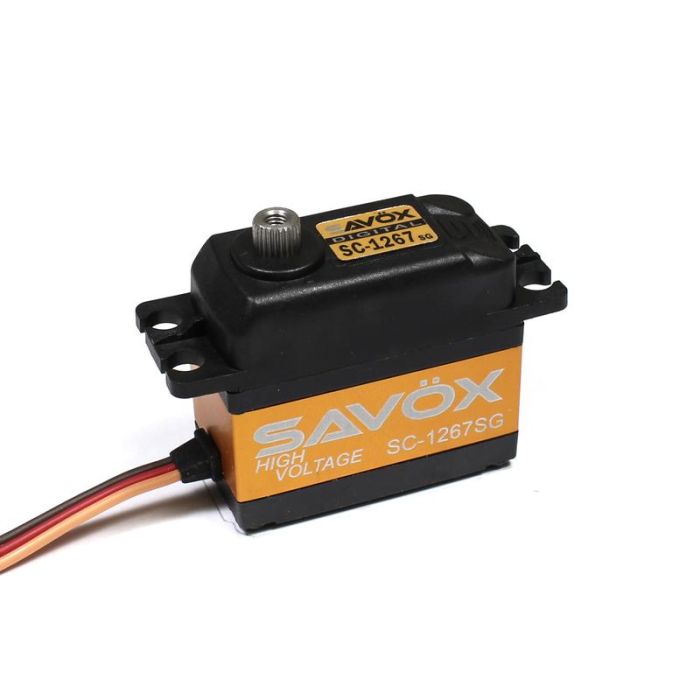

Savox Servo Digital (21kg/cm) 7.4Volt (SC-1267SG)
Grösse (mm): 40.3 x 20.2 x 37.2
Gewicht(g): 62.0
Getriebe: Unique steel
Gehäuse: Aluminium
Bei 7.4 Volt:
Stellgeschwindigkeit sec/60°: 0.095
Stellkraft kg-cm: 20.2
The SC-1267SG servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo.
Features:
Super strong and precision made unique steel gears provide durability and survive heavy use.
Capable of HV operation.
Good speed and torque for numerous applications.
Great replacement for RTR vehicles and other applications.
Specifications:
Torque @ 6v - 13.0kg/180.5oz-in
Torque @ 7.4v - 20.0kg/277.7oz-in
Speed @ 6v - 0.11 sec/60 deg
Speed @ 7.4v - 0.095 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 62.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
