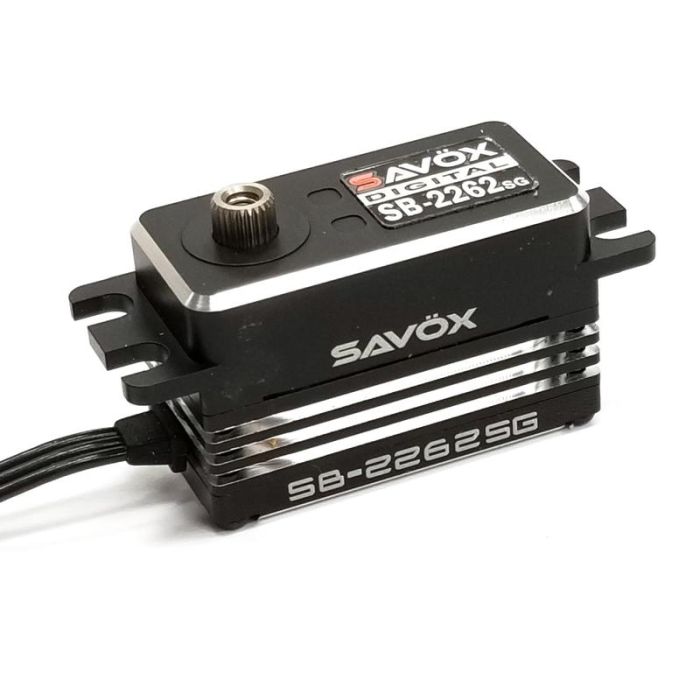

Savöx Servo (23kg/cm) 7.4Volt BLACK EDITION (SB2262SG)
The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Dieser Servo kann bis 8,4 Volt betrieben werden! (Voller 2S Lipo-Akku)
Grösse (mm): 40.8 x 20.2 x 25.75
Gewicht(g): 62.0
Getriebe: Metal
Gehäuse: Full Aluminium
Features:
Full Aluminum Case
2 Precision Ball Bearings
Metal Gears
Torque @ 6.0v - 18kg / 250oz-in
Speed @ 6.0v - 0.10 sec / 60deg
Specifications:
Torque @ 7.4v - 25kg / 347.2oz-in
Speed @ 7.4v - 0.08 sec / 60deg
Torque @ 8.4v - 32kg / 444.4oz-in
Speed @ 8.4v - 0.065 sec / 60deg
Dimensions L x W x H (mm): 40.8 x 20.2 x 25.75
Weight: 62g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
