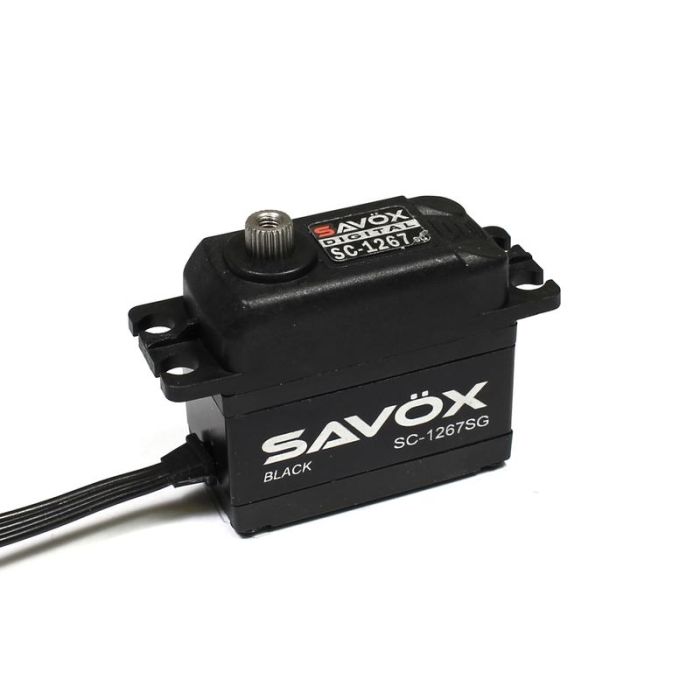

Savox Servo (20kg/cm) 7.4Volt BLACK EDITION (SC-1267SG)

The SC-1267SG servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo, and with an all black color providing a stealth look.

Features:

Super strong and precision made unique steel gears provide durability and survive heavy use.
Sleek black design with laser etching and a shorter 200mm black lead wire.
Capable of HV operation.
Good speed and torque for numerous applications.
Great replacement for RTR vehicles and other applications.

Specifications:
Torque @ 6v - 13.0kg/180.5oz-in
Torque @ 7.4v - 20.0kg/277.7oz-in
Speed @ 6v - 0.11 sec/60 deg
Speed @ 7.4v - 0.095 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 62.0g

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
Wire Length: 200 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
